Original Article

Volume 3, Number 6, December 2011, pages 279-284

Short-Term Effects of High-Frequency Chest Compression and Positive Expiratory Pressure in Patients With Cystic Fibrosis

In cystic fibrosis (CF) mucociliary clearance is impaired, and infected airway secretions gradually cause lung tissue destruction. As a result, peripheral airways tend to collapse leading to trapping air, mucus obstruction, and chronic pulmonary infections [1]. Airway clearance therapies (ACTs) are one of the cornerstones of CF treatment. Main goal of the ACTs is to improve ventilation and enhance airway clearance through the mobilization and expectoration of mucus. Over the last years new ACTs has been developed in the attempt to provide more independence, better quality of life and increased compliance through a more comfortable and less time consuming technique [2].

High-frequency chest compression (HFCC), an oscillatory device, is a self-administered chest physiotherapy that with an inflatable compressive jacket generates airways vibrations, increases airflow, and mobilizes mucus. Though HFCC was firstly used in 1990 showing greater results than conventional physiotherapy in mucus clearance [3], literature still shows conflicting results about the effectiveness of this therapy.

Compared with conventional physiotherapy (i.e. postural drainage and percussion, PD&P), Kluft et al reported that HFCC produced a greater amount of sputum over a six-day period [4], and Warwick first demonstrated a positive long-term effect of HFCC on FEV₁ (forced expiratory volume in 1 second) and FVC (forced vital capacity) [5]. Other studies found no difference in pulmonary function [6-8], sputum production [6,7,9], and in oxygen saturation during or following treatments [8]. If compared with active cycle of breathing techniques, HFCC resulted less effective in improving lung volumes and mucus expectoration [10]

Patients preference, a critical determinant of ACTs adherence [11], was discussed by Braggion and Varekojis, without statistical evidence [6,9], and by Arens who reported greater satisfaction with HFCC [8]. The latest study comparing HFCC, postural drainage and Flutter device, although early interrupted for high dropout rate, showed that patients were more satisfied with oscillating devices [12].

A recent review concluded that oscillating devices are not superior, in terms of effectiveness and acceptability, to any other forms of physiotherapy techniques [13].

A more common airway clearance device is the positive expiratory pressure (PEP) mask that, increasing air flow to small peripheral airways, is thought to have beneficial effects on sputum production [14]. To date, in CF patients HFCC was compared to PEP in only three trials [6,15,16]. Two of them found no statistical difference in sputum production [6] and lung function with both devices [6,16]; the more recent trial by Osman et al reported a statistically significant greater volume of expectoration by usual ACTs but no difference in lung volumes [15]. Notably, the results from the latter study came from a comparison between HFCC and usual ACTs including, not only PEP, but also active cycle of breathing techniques with postural drainage and percussion, autogenic drainage, and Flutter device.

The aim of the present study was to compare the short-term efficacy, assessed by sputum production, of HFCC and PEP in hospitalized adult patients with mild to moderate CF lung disease. Secondary outcomes included pulmonary function tests, and oxygen saturation before and after each airway clearance treatment, adverse effects and patient preference.

Participants were current patients of the Cystic Fibrosis Unit of Parma University Hospital, admitted to ward for management of an acute exacerbation of respiratory symptoms. The inclusion criteria were a confirmed diagnosis of CF, age > 18 years, mild to moderate lung function impairment (FEV₁ > 60%), chronic infection by Pseudomonas aeruginosa, and an infective pulmonary exacerbation as defined by the following symptoms: increased cough, volume and purulence of sputum, fatigue, dyspnoea, decrease in pulmonary function, and weigh loss [17]. The patients were treated with intravenous antibiotics (combination of β-lattamic plus aminoglycoside) for at least 15 days. In addition, routine medication was continued throughout the study.

Exclusion criteria were patients on steroid therapy, patients awaiting for lung transplant, affected by concomitant malignancies, haemoptysis, and rib fractures, or pregnancy. Informed consent was obtained from all individuals and the study was approved by the Ethical Committee of the University of Parma.

Enrolled patients routinely used PEP mask therapy three times daily. Before starting the study each patient was familiarized with HFCC through a certified respiratory therapist who explained how the device operated.

A randomized cross-over trial with 24 hours between treatments was used to compare HFCC and PEP mask. Patients were admitted on day 0 and, after clinical and functional evaluation, underwent either PEP mask therapy on day 1 and HFCC treatment on day 2 or vice-versa. Subjects were assigned to one of the two treatments by numbering them consecutively: odd-numbered subjects were assigned to perform HFCC on day 1 and PEP therapy on day 2; even-numbered subjects did the opposite. All study sections were at morning, between 8.00 h a.m. and 10.00 h a.m.; each airway clearance treatment session lasted 30 minutes and was assisted by the same physiotherapist.

On each study section, immediately before and 30 minutes after each treatment, pulmonary function testing, transcutaneous pulsed arterial oxygen saturation (SpO₂, %), and perceived dyspnea ratings were recorded. During each treatment session and over 30 minutes the amount (mL) of sputum was collected and measured with a burette. An independent observer, blind to the method of airway clearance used, performed the spirometry and weighed the sputum. At the end of the trial patients were asked if they felt comfortable with the two devices answering to a Yes/No question.

HFCC is a portable mechanical method of self-administered chest physiotherapy. HFCC was delivered by a pneumatic vest (The Vest Airway Clearance System Model 4 by Hill-Rom®, St. Paul, MN, US), appropriately sized, that surrounded the thorax of the patient. Vest was connected by two tubes to the air-pulse generator and inflated by a constant positive pressure with a 15-20 Hz frequency of air pressure oscillations. The pulse pressure (ranging 6-10 on the 1-10 Vest’s scale) was set according to individual patient’s reported comfort. Subjects remained in the upright sitting position throughout the 30 minutes treatment session. During the HFCC patients were invited to huff and to cough actively (ranging 3-5 times) as to expectorate dislodged bronchial secretions.

PEP mask (Astra Tech AB, Molndal, Sweden) has a one-way valve to which an expiratory orifice resistor is attached. When the patient exhales trough the resistor a positive pressure is generated in the airways (10-20 cm H₂O) and collapsed lung are re-inflated raising the functional residual capacity. According to the guidelines, the patients, placed in a sitting position, were instructed to hold tightly the mask over the mouth and the nose and were invited to breath using slightly active breaths for 30 minutes. Each treatment consisted of 15 breaths approximately followed by more cycles of forced expiration (huff). The number of cycles within a treatment session was adapted to individual comfort [18].

Spirometry was performed with a computerized spirometer (VMAX22 PFT Sensormedics, Yorba Linda, CA, US) according to the international standards [19]. FEV₁ (%), forced expiratory flow 25-75 (FEF_25-75, %), and FVC were recorded and expressed as percent of predicted value. SpO₂ was measured by a fingertip pulse oximeter (Nellcor P200, Puritan Bennett LLC, Boulder, CO, US).

Perceived dyspnoea ratings were obtained by using a modified Borg scale labeled from 0 (no symptoms) to 10 (maximum bearable) [20].

Data were expressed as mean ± SD or percentage, as appropriate. Paired t-test or Chi Square analysis was used for comparisons, when appropriate. A P value < 0.05 was considered as statistically significant. All analyses were conducted using SPSS Statistics 16.0 (IBM).

Thirty-six CF patients were enrolled. Thirty four of 36 (20 females) completed the study, two patients withdrew from the study because of discomfort with HFCC device. In patients who completed the study, both PEP and HFCC techniques have not been associated with statistically significant side effects. Demographics and baseline characteristics of the 34 patients are shown in Table 1.

Click to view

Table 1. Demographics of Enrolled Participants

FEV₁, FEF_25-75 and FVC measured before and after PEP mask and HFCC treatment session are reported in Table 2. No statistically significant difference was found after both treatments. As compared to baseline values, small but statistically significant decrease in SpO₂ values was found after PEP treatment (98 ± 1.0% versus 97 ± 1.2%; P < 0.001), but not after HFCC treatment (97 ± 1.6% versus 97 ± 1.2%) (Table 2).

Click to view

Table 2. Lung Function Values: Before (Pre) and After (Post) PEP and HFCC Treatments

The average amount of sputum expectorated after PEP (8.8 ± 8.8 mL) and after HFCC (7.5 ± 8.9 mL) did not significantly differ (Fig. 1). Both treatments induced a statistically significant increase in Borg scale for dyspnea without differences between them (Table 3).

Click for large image

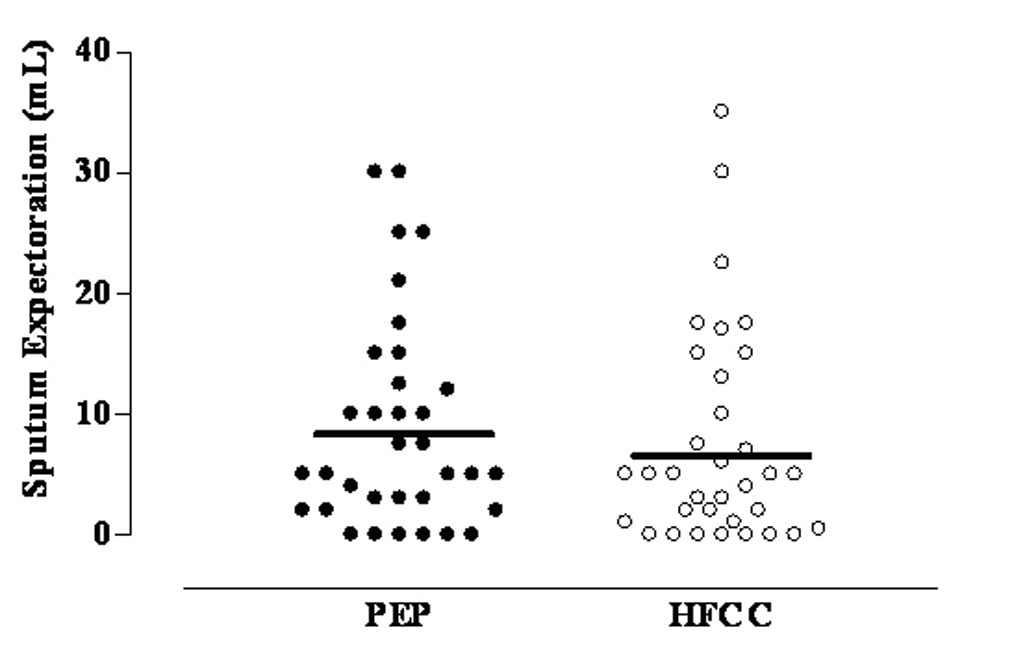

Figure 1. Mean and individual values of sputum expectoration after PEP and HFCC in 34 CF patients.

Click to view

Table 3. Borg Dyspnea Scale Before (Pre) and After (Post) PEP and HFCC Treatments

Forty-one per cent of the patients expressed no preference for the devices reporting that they found comfortable both techniques, 50% preferred PEP therapy, and 9% HFCC (P < 0.001).

The present study showed that in CF patients, hospitalized for pulmonary exacerbation, both PEP and HFCC had comparable short-term effect on sputum production and lung function. A small but statistically significant reduction in oxygen saturation was found following PEP therapy; but not after HFCC. PEP therapy was much preferred than HFCC.

Our study confirmed the findings by previous reports that found no statistically significant differences between baseline and after intervention values with either HFCC or PEP, both in sputum production and pulmonary function measures [6,7]. By contrast, Kluft et al reported a greater effect of HFCC on sputum production compared to other conventional techniques [4]. However, it is of note that in that study a nebulised saline was administered throughout the treatment to prevent airway drying. Taken together these findings suggest that the nebulised saline solution could magnify the effect of HFCC. The absence of a statistically significant modification in lung volumes suggests that spirometry may be inadequate to detect the short-term effects of ACTs.

We found a small but statistically significant reduction in oxygen saturation when patients underwent PEP therapy. But the results showed that this finding was not due to a greater mucus mobilization. An opposite result was reported in the study by Darbee et al, where oxygen saturation increased during PEP and decreased during HFCC. These modifications were not sustained after treatment [16]. The discrepancy between our and Darbee’s results can be explained by differences in the study protocol. In our study, oxygen saturation was recorded 30 minutes after therapy, while in the study by Darbee et al it was recorded during therapy [16]. Importantly, ours and Darbee’s results may suggest to monitor oxygen saturation during and after airway clearance treatments, mainly in CF patients with severe lung disease where SpO₂ desaturation may be greater and more clinically significant.

A recognized positive feature of high-frequency chest wall oscillations is that it is self-administered and do not require the patient to change positions [4]; accordingly, HFCC might preserve independence and it may be useful in fatigue patients who cannot tolerate additional respiratory work. However, in spite of that and by contrast with previous studies, reporting greater satisfaction and compliance with oscillatory devices compared to conventional chest physiotherapy [8,12], our patients expressed more satisfaction with PEP therapy than HFCC. Furthermore, two out of 36 patients withdrew from the study because of discomfort with HFCC device. It is conceivable that the preference for HFCC demonstrated by the previous studies may have been influenced by the study protocol modalities. Notably, in these studies physiotherapy was self-managed, performed at home, and the compliance to the treatment was not constantly assured by a physiotherapist.

We are aware of the limitations of our study. Firstly, we assessed the short-term effect of the two airway clearance devices and we cannot draw any conclusion about their long-term effects. To date, few trials have compared the potential benefits of HFCC with other forms of airway clearance and the studies were mostly 1 or 2 days long. Recently, Sontag et al [12] started a 3 years-longitudinal trial to compare PD&D, HFCC and Flutter device but they ended early the study because of the high rate of withdrawal. Secondly, in the present study we considered fresh sputum, as outcome measure. Scherer et al [7] reported that evaluating ACTs efficacy through fresh sputum weight might be inaccurate because of the contaminations of lower airways secretions with saliva, due to its high water content. However, no difference has been found between dried and fresh sputum, when considered as outcome measures to assess the efficacy of different airway clearance devices [4].

In conclusion, our study showed that HFCC was comparable to PEP in terms of sputum production and lung function effects, but not in terms of acceptability. To date no studies have clearly demonstrated the optimal airway clearance, likely due to different patients features, such as age, compliance, concomitant disease, and severity of lung involvement by CF [21]. Thus, airway clearance treatment should be individualized, and its efficacy periodically reassessed evaluating patient preference and objective measures, such as lung function test or exacerbation rate.

Conflicts of Interest

None of the authors received any outside funding or grants in support of the trial or for preparation of the work. The authors have disclosed no other conflict of interests.

1. Rowe SM, Miller S, Sorscher EJ. Cystic fibrosis. N Engl J Med. 2005;352(19):1992-2001.
   pubmed
2. Pisi G, Chetta A. Airway clearance therapy in cystic fibrosis patients. Acta Biomed. 2009;80(2):102-106.
   pubmed
3. Hansen LG, Warwick WJ. High-frequency chest compression system to aid in clearance of mucus from the lung. Biomed Instrum Technol. 1990;24(4):289-294.
   pubmed
4. Kluft J, Beker L, Castagnino M, Gaiser J, Chaney H, Fink RJ. A comparison of bronchial drainage treatments in cystic fibrosis. Pediatr Pulmonol. 1996;22(4):271-274.
   pubmed
5. Warwick WJ, Wielinski CL, Hansen LG. Comparison of expectorated sputum after manual chest physical therapy and high-frequency chest compression. Biomed Instrum Technol. 2004;38(6):470-475.
   pubmed
6. Braggion C, Cappelletti LM, Cornacchia M, Zanolla L, Mastella G. Short-term effects of three chest physiotherapy regimens in patients hospitalized for pulmonary exacerbations of cystic fibrosis: a cross-over randomized study. Pediatr Pulmonol. 1995;19(1):16-22.
   pubmed
7. Scherer TA, Barandun J, Martinez E, Wanner A, Rubin EM. Effect of high-frequency oral airway and chest wall oscillation and conventional chest physical therapy on expectoration in patients with stable cystic fibrosis. Chest. 1998;113(4):1019-1027.
   pubmed
8. Arens R, Gozal D, Omlin KJ, Vega J, Boyd KP, Keens TG, Woo MS. Comparison of high frequency chest compression and conventional chest physiotherapy in hospitalized patients with cystic fibrosis. Am J Respir Crit Care Med. 1994;150(4):1154-1157.
   pubmed
9. Varekojis SM, Douce FH, Flucke RL, Filbrun DA, Tice JS, McCoy KS, Castile RG. A comparison of the therapeutic effectiveness of and preference for postural drainage and percussion, intrapulmonary percussive ventilation, and high-frequency chest wall compression in hospitalized cystic fibrosis patients. Respir Care. 2003;48(1):24-28.
   pubmed
10. Phillips GE, Pike SE, Jaffe A, Bush A. Comparison of active cycle of breathing and high-frequency oscillation jacket in children with cystic fibrosis. Pediatr Pulmonol. 2004;37(1):71-75.
    pubmed
11. Oermann CM, Swank PR, Sockrider MM. Validation of an instrument measuring patient satisfaction with chest physiotherapy techniques in cystic fibrosis. Chest. 2000;118(1):92-97.
    pubmed
12. Sontag MK, Quittner AL, Modi AC, Koenig JM, Giles D, Oermann CM, Konstan MW, et al. Lessons learned from a randomized trial of airway secretion clearance techniques in cystic fibrosis. Pediatr Pulmonol. 2010;45(3):291-300.
    pubmed
13. Morrison L, Agnew J. Oscillating devices for airway clearance in people with cystic fibrosis. Cochrane Database Syst Rev. (1):
    pubmed
14. Elkins MR, Jones A, van der Schans C. Positive expiratory pressure physiotherapy for airway clearance in people with cystic fibrosis. Cochrane Database Syst Rev. 2006;(2):CD003147.
    pubmed
15. Osman LP, Roughton M, Hodson ME, Pryor JA. Short-term comparative study of high frequency chest wall oscillation and European airway clearance techniques in patients with cystic fibrosis. Thorax. 2010;65(3):196-200.
    pubmed
16. Darbee JC, Kanga JF, Ohtake PJ. Physiologic evidence for high-frequency chest wall oscillation and positive expiratory pressure breathing in hospitalized subjects with cystic fibrosis. Phys Ther. 2005;85(12):1278-1289.
    pubmed
17. Ferkol T, Rosenfeld M, Milla CE. Cystic fibrosis pulmonary exacerbations. J Pediatr. 2006;148(2):259-264.
    pubmed
18. Cfww.org [http://www.cfww.org/]. International physiotherapy group for CF. Physiotherapy in the treatment of CF. 4hd ed. 2009. Available from: http://www.cfww.org/ipg-cf.
19. Miller MR, Hankinson J, Brusasco V, Burgos F, Casaburi R, Coates A, Crapo R, et al. Standardisation of spirometry. Eur Respir J. 2005;26(2):319-338.
    pubmed
20. Borg G. Psychophysical scaling with applications in physical work and the perception of exertion. Scand J Work Environ Health. 1990;16:55-58.
    pubmed
21. Flume PA, Robinson KA, O'Sullivan BP, Finder JD, Vender RL, Willey-Courand DB, White TB, et al. Cystic fibrosis pulmonary guidelines: airway clearance therapies. Respir Care. 2009;54(4):522-537.
    pubmed
