J Clin Med Res
Journal of Clinical Medicine Research, ISSN 1918-3003 print, 1918-3011 online, Open Access
Article copyright, the authors; Journal compilation copyright, J Clin Med Res and Elmer Press Inc
Journal website http://www.jocmr.org

Case Report

Volume 5, Number 3, June 2013, pages 239-242


Pulmonary and Cerebral Fat Embolism Syndrome After Total Knee Replacement

Soo Hyun Yeoa, Hyuk Won Changa, d, Sung Il Sohnb, Chul Hyun Choc, Ki-Cheor Baec

aDepartment of Radiology, Keimyung University School of Medicine, Korea
bDepartment of Neurology, Keimyung University School of Medicine, Korea
cDepartment of Orthopaedic Surgery, Keimyung University School of Medicine, Korea
dCorresponding author: Hyuk Won Chang, Department of Radiology, Keimyung, University Dong San Medical Center, 56 Dalseong-ro, Jung-gu, Daegu 700-712, Korea

Manuscript accepted for publication January 04, 2013
Short title: Pulmonary and Cerebral Fat Embolism Syndrome
doi: https://doi.org/10.4021/jocmr1251w

Abstract▴Top

Fat embolism occurs after long bone fracture or orthopedic surgery and usually shows mild symptom. But it rarely results in fat embolism syndrome, presenting as multiorgan dysfunction such as lung, brain and skin. Although the diagnosis of fat embolism syndrome is mostly based on clinical features, we experienced fat embolism syndrome involving lung and brain, showing typical imaging findings in pulmonary computed tomography and brain magnetic resonance image. So we present interesting case about fat embolism syndrome after total knee replacement with reviewing associated literatures including imaging findings.

Keywords: Fat embolism syndrome; Tomography; X-Ray Computed; Magnetic Resonance Imaging; Diffusion magnetic resonance imaging

Introduction▴Top

Fat embolism is a relatively common complication after pelvic and long bone fracture, and is commonly seen after procedures or conditions such as orthopaedic surgery, severe burns, liver injury, closed-chest cardiac massage and liposuction [1-3]. In general, fat embolism is asymptomatic, but in 1-5% of patients, fat embolism results in the fat embolism syndrome associated with multiorgan dysfunction involving sites such as the lung, brain and skin due to direct entry of fat globules into the systemic circulation [1, 2, 4].

Fat embolism syndrome typically develops 24 to 72 hours after the initial injury and usually appears with a classical triad consisting of hypoxemia, neurologic abnormality and petechial rash [2].

Fat embolism syndrome with either pulmonary or cerebral involvement confirmed by radiologic modalities have been described in many previous studies, but few radiologic reports have described combined pulmonary and cerebral fat embolism in a patient with fat embolism syndrome after trauma or orthopaedic surgery [1, 2, 5-7]. So, we present an interesting case of fat embolism syndrome involving both brain and lung after total knee replacement, with a review of the literature including typical imaging findings.

Case Report▴Top

A 64-year-old woman visited our orthopaedic department for pain in both knees.

The patient had suffered from pain in both knees for six years and the patient was managed with medications for pain control at a local medical centre. However, the pain was more aggravated from six months prior, and the medication was not sufficient to control the pain. After the patient had visited our orthopaedic department, the patient was diagnosed as having osteoarthritis in both knees and total knee replacement was recommended (Fig. 1a).

Figure 1.
Click for large image
Figure 1. (a) Preoperative both knee radiographs reveal narrowing of articular space with subchondral sclerosis and spur formation. (b) Postoperative both knee radiographs reveal metallic prosthesis in both knee joints.

The patient was treated supportively with mechanical ventilation, supplemental oxygen and heparinization. The patient showed gradual improvement of the respiratory and neurological status and no further complications were noted such as wound infection or rebleeding. The patient was discharged from hospital with nearly a fully recovered state two weeks after surgery.

Discussion▴Top

Fat embolism syndrome is a clinical diagnosis and is caused by the release of fat droplets into the systemic circulation after conditions or procedures such as pelvic or long bone fracture, orthopaedic surgery or other interventions [1, 4].

The pathophysiology of fat embolism syndrome is unclear, but two mechanisms have been suggested [3]. One mechanism is a mechanical mechanism that suggests that physical obstruction of the systemic vasculature occurs that is caused by fat globules released from the bone marrow of long bones due to increased intramedullary pressure after trauma or orthopaedic surgery such as placement of intramedullary rods [3, 4, 8]. The other mechanism is a biochemical mechanism that suggests that free fatty acid can cause a local inflammatory response and direct toxicity to the lung or capillary endothelium. Fat emboli are metabolised to free fatty acids; in addition, different hormonal changes after trauma or sepsis can induce systemic circulation of free fatty acids [3, 4]. The conversion of fat emboli to free fatty acids requires 24 to 48 hours; thus, symptoms of fat embolism syndrome occur at 24 to 72 hours after the initial insult.

Fat embolism syndrome is usually manifested as a multiorgan disorder that typically involves the respiratory system, central nervous system, cardiovascular system, skin and eyes. Gurd and Wilson have suggested criteria for the diagnosis of fat embolism syndrome, with three major criteria including respiratory insufficiency, cerebral involvement, petechial rash and nine minor criteria such as pyrexia, tachycardia, retinal changes, jaundice, renal change, anemia, thrombocytopenia, increased erythrocyte sedimentation rate (ESR) and fat macroglobulinemia [9]. These investigators have suggested that at least two symptoms for the major criteria or one symptom for the major criteria and four symptoms for the minor criteria must be present to diagnose the syndrome.

The diagnosis of fat embolism syndrome is mainly based on clinical criteria but further confirmation can be achieved by finding a typical image pattern on CT or MR images. Pulmonary CT or brain MR imaging has been used to determine the etiology of a sudden change of mentality or the presence of respiratory symptoms.

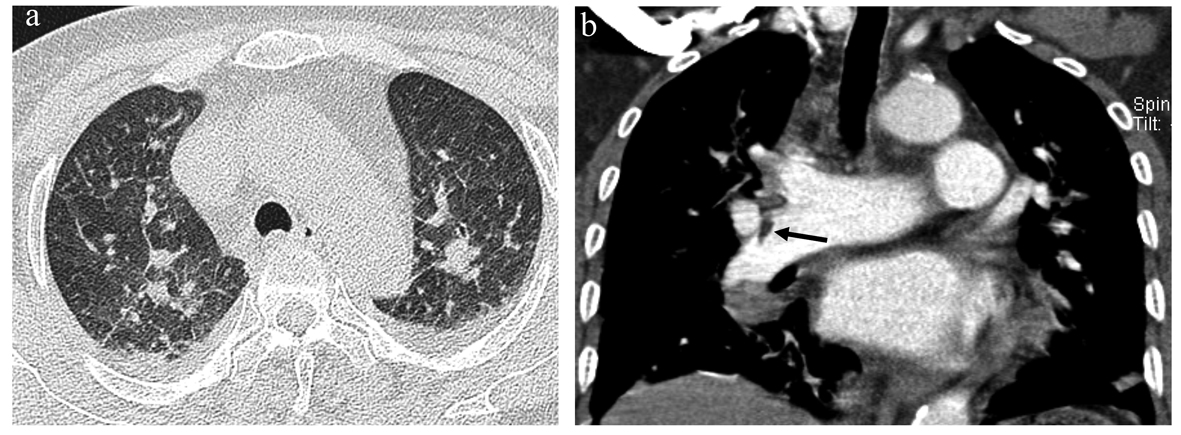

Common CT findings of pulmonary fat embolism are non-specific focal or diffuse consolidation and ground glass opacity that may be due to interstitial or alveolar haemorrhage, oedema and chemical pneumonitis [2]. A finding of a filling defect in the pulmonary artery that shows negative HU is more favourable for a diagnosis of pulmonary fat embolism [2, 8].

MRI is the most sensitive technique to confirm the presence of a cerebral fat embolism, particularly the use of a diffusion-weighted imaging (DWI) sequence at an acute stage [5, 6]. Typical findings of cerebral fat embolism are multiple small, dot-like hyperintense lesions on DWI and T2-weighted images, situated within the periventricular and deep white matter [6]. The number and size of the lesions are usually correlated with the degree of neurologic disability as measured by the Glasgow Coma Scale [6].

To the best of our knowledge there is only one case report that has described fat embolism syndrome involving the lung and brain with radiological findings, except one case report [7]. The paucity of these cases is probably due to the infrequent use of CT or MR imaging in the past. However, with increased use of CT or MR imaging to confirm the presence of fat embolism syndrome and to exclude other causes, it is possible that orthopaedic surgeons will more commonly encounter fat embolism syndrome involving the brain, lung and other sites after trauma or orthopaedic surgery.


References▴Top
  1. Huang BK, Monu JU, Wandtke J. Pulmonary fat embolism after pelvic and long bone fractures in a trauma patient. Emerg Radiol. 2009;16(5):407-409.
    pubmed
  2. Nucifora G, Hysko F, Vit A, Vasciaveo A. Pulmonary fat embolism: common and unusual computed tomography findings. J Comput Assist Tomogr. 2007;31(5):806-807.
    pubmed
  3. Taviloglu K, Yanar H. Fat embolism syndrome. Surg Today. 2007;37(1):5-8.
    pubmed
  4. Van den Brande FG, Hellemans S, De Schepper A, De Paep R, Op De Beeck B, De Raeve HR, Jorens PG. Post-traumatic severe fat embolism syndrome with uncommon CT findings. Anaesth Intensive Care. 2006;34(1):102-106.
    pubmed
  5. Ryu CW, Lee DH, Kim TK, Kim SJ, Kim HS, Lee JH, Choi CG, et al. Cerebral fat embolism: diffusion-weighted magnetic resonance imaging findings. Acta Radiol. 2005;46(5):528-533.
    pubmed
  6. Butteriss DJ, Mahad D, Soh C, Walls T, Weir D, Birchall D. Reversible cytotoxic cerebral edema in cerebral fat embolism. AJNR Am J Neuroradiol. 2006;27(3):620-623.
    pubmed
  7. Imberti R, Scagnelli P, Amatu A. Post-traumatic pulmonary and cerebral fat embolism. Anaesth Intensive Care. 2008;36(4):619-621.
    pubmed
  8. Ravenel JG, Heyneman LE, McAdams HP. Computed tomography diagnosis of macroscopic pulmonary fat embolism. J Thorac Imaging. 2002;17(2):154-156.
    pubmed
  9. Gurd AR, Wilson RI. The fat embolism syndrome. J Bone Joint Surg Br. 1974;56:408-416.
    pubmed


This is an open-access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.
